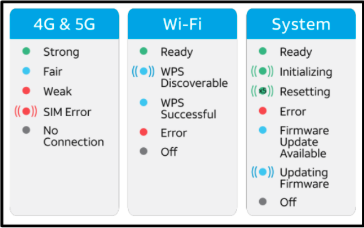

LED Light Guide and Meanings

To better understand the status and performance of your Wing Internet Nexus 5G, it’s important to become familiar with the LED indicators located on the front of the device. These lights provide quick visual cues about the router’s network connection, Wi-Fi activity, and overall system status.

• 4G & 5G LED Lights
  Indicate the cellular network signal strength and connection status.
• Wi-Fi LED Light
  Indicates the Wi-Fi broadcast and WPS (Wi-Fi Protected Setup) activity.
• System LED Light
  Reflects the overall system status and firmware condition.

By observing these LED patterns, you can quickly identify the router’s current state and troubleshoot any connectivity issues with ease.
